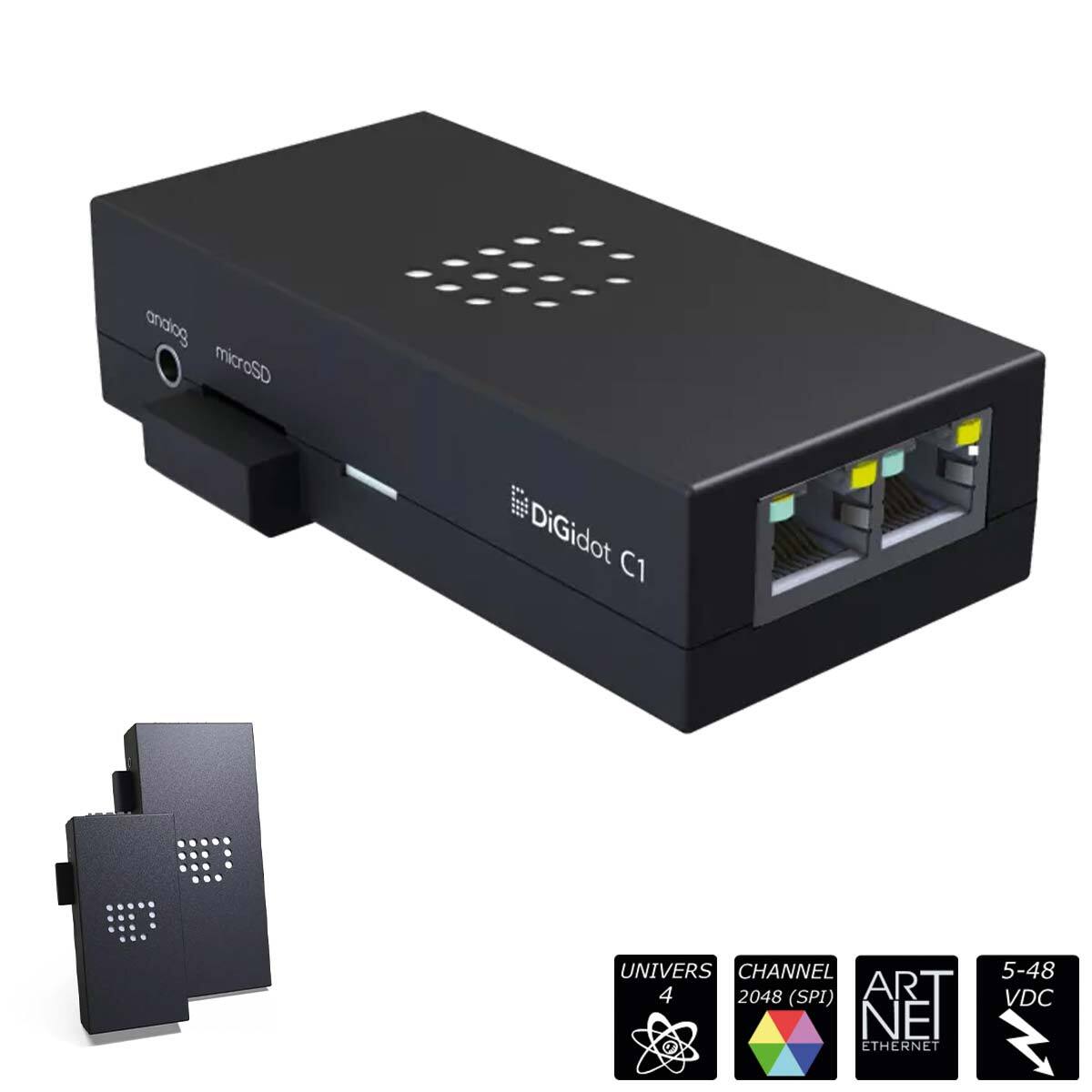

DiGidot C1 Live 4 // 4 universe 2048ch
DiGidot C1 Live 4 // 4 universe 2048chDiGidot C1 Live 4 // 4 universe 2048ch

DiGidot C1 Live 4 // 4 universe 2048ch

Numero di valutazioni: 0
Art.no: DG21101
Professional small controller for digital LED strips and DMX applications, Art-Net input / output, WiFi, input protocols: Art-Net, DMX, DiGidot IOS App, UDP, HTTP output protocols: DMX, DMX TTL, up to 510 pixels per output, LED drivers: APA102, APA106, BS0901, DM412, GW6205, INK1003, LPD6803, MY9231, SK6812, TM1803, TM1809, UCS1903, UCS1904, UCS2903, UCS2904, UCS2912, UCS8904, UCS9812, WS2801, WS2811, WS2812, WS2812B
Stock: auf Anfrage
Datenblatt
Lista dei desideri
Elenco di confronto
The DiGidot C1 is the smallest, most powerful LED controller and is particularly suitable for direct control of pixel strips. The DiGidot C1 is an Art-Net live interface. Available for 4 universes in the live version and 1 universe in the extended version for controlling up to 2048 channels or 682 RGB pixels via SPI. In addition to the direct control of digital LEDs via SPI, the output can also optionally output two DMX universes. The DiGidot C1 can be set up conveniently via the web browser. The DiGidot C1 supports more than 40 different digitally addressable LED/chip types. Three different versions with different numbers of universes are available. The DiGidot C1 serves only as an interface and does not include any control software. A separate Art-Net compatible control software such as MADRIX, ArKaos etc. is required for use.

- up to 4 Art-Net universes or 2 DMX universes
- up to 2048 channels
- compatible with over 40 digitally addressable LED/chip types
- connection to Art-Net via Ethernet cable
- configuration via web browser
- separate Art-Net compatible software is required for control and programming
- wall or ceiling mounting or on top-hat rail
Bewertungen (0)
Sie müssen angemeldet sein, um eine Bewertung abgeben zu können.
So bewerten andere Kunden diesen Artikel:
0
(
basato su 0
Recensioni)

Elektrische Daten

Betriebsspannung:5 - 48V
Leistung (Watt):5

Technische Daten

Umgebungstemperatur:0° bis 50°

Dimmer und Controller Funktionen

Steuerkanäle:2048
Programmierbar:Si

Schnittstellen

DMX:Si
ArtNet:Si
Digital - SPI:Si

Netzteil und Controller Daten

Lüfter:ohne Lüfter

Prüfzeichen

IP Schutzklasse:IP20

Varianti

Länge in mm:95
Breite in mm:45
Höhe in mm:25
