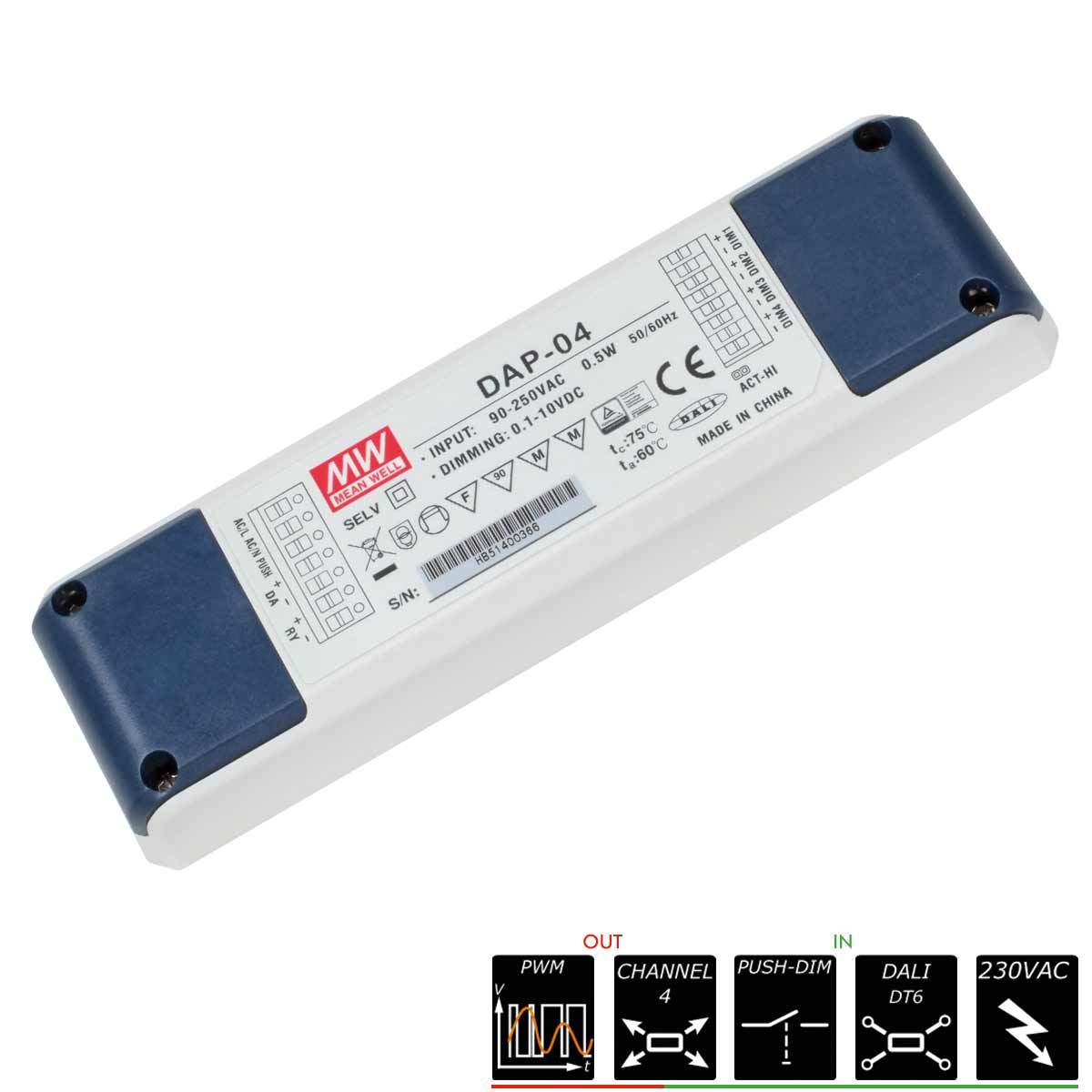

DALI-PWM converter with relay output (controlled via channel 1), converts the DALI signal into 4 PWM outputs (4 channels), relay contact 8A continuous current (50A inrush current), power supply 90-305 VAC
The MEAN WELL DALI-PWM CONVERTER converts the DALI signal into a PWM signal. The converter has four PWM signal output channels, which are seperately controllable via DALI. Additonally, the converter has a relais which can switch off the output when the dimming level is set to 0 on channel 1.
- relais 8 A continuous current, 50 A inrush current ( refer to channel 1) - dimming curve selectable (linear/logarithmic)
