FLEX STRIP MPS-700 3-IN-1 4.8/9.6/14W FREE-CUT MONO CW 5m
FLEX STRIP MPS-700 3-IN-1 4.8/9.6/14W FREE-CUT MONO CW 5m FLEX STRIP MPS-700 3-IN-1 4.8/9.6/14W FREE-CUT MONO CW 5m FLEX STRIP MPS-700 3-IN-1 4.8/9.6/14W FREE-CUT MONO CW 5m FLEX STRIP MPS-700 3-IN-1 4.8/9.6/14W FREE-CUT MONO CW 5m

FLEX STRIP MPS-700 3-IN-1 4.8/9.6/14W FREE-CUT MONO CW 5m

Numero di valutazioni: 0
Art.no: AS1MPSFC04

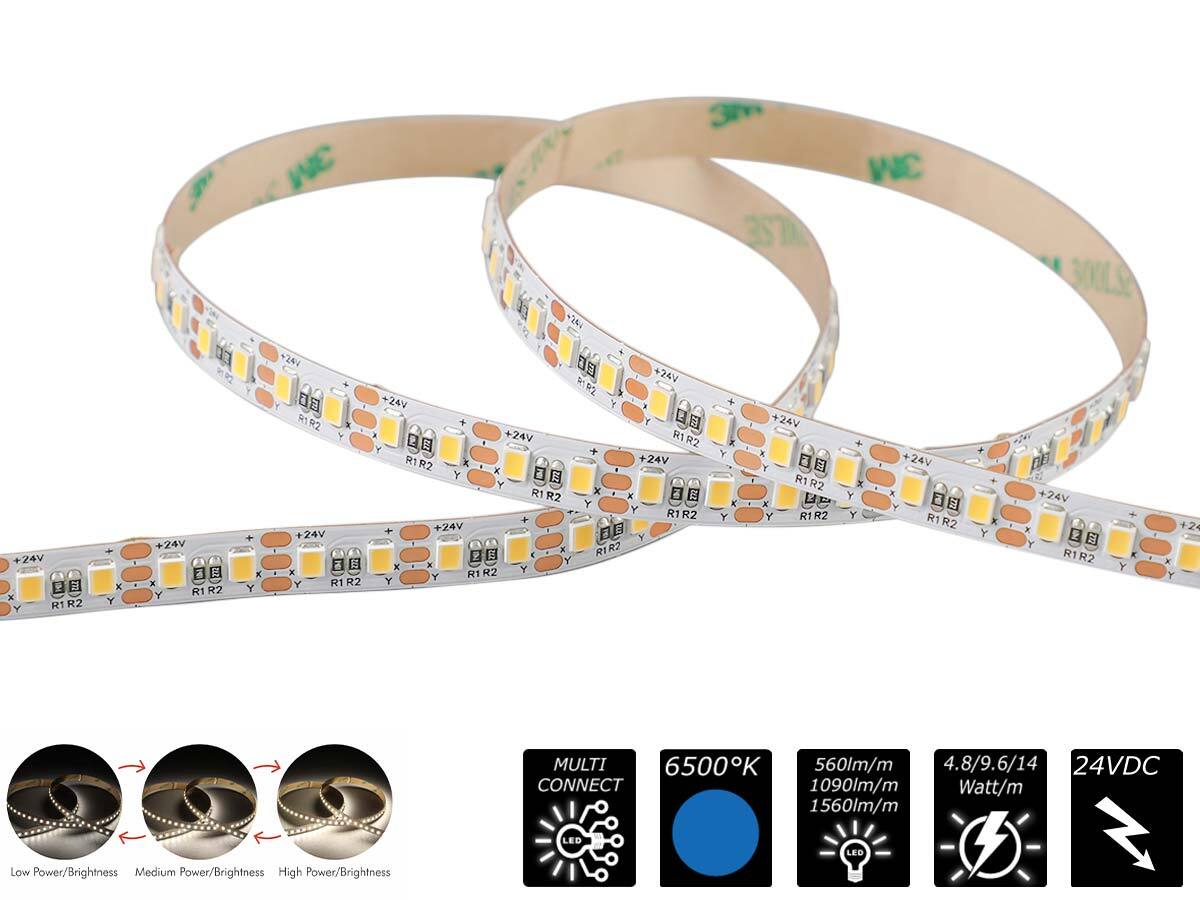

Multi-power Series 3-in-1, white 6500°K, divisible every 14.25mm (2 chips), 24 VDC, 4.8/9.6/14 watts/m, luminous flux 560/1090/1560 Lumen/m (±10%), CRI90, wiring 4.8W X+V+ / 9.6W Y+V+ / 14W Y+X+V+
Stock: auf Anfrage
B
Datenblatt
Lista dei desideri
Elenco di confronto
The new awLed FLEX STRIPS are ideal for indirect lighting, for custom-made products in trade fair and store fitting and for all types of lighting. Lengths are no longer an issue - this strip offers total flexibility and performance is also no longer an issue.
The awLed FLEX STRIPS offer a wide range of possible applications thanks to their small size and customizable length.
  • Cutting dimension of 8.33mm, illumination is guaranteed
  • Luminous flux up to 3000 lumen/m
  • High flexibility - adaptable to round shapes
  • Pitch distance 4.17mm
  • Fastening with 3M adhesive tape on the back of the strip (self-adhesive)
  • Dimmable and controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF via MULTI power supply units/controllers
Bewertungen (0)
Sie müssen angemeldet sein, um eine Bewertung abgeben zu können.
So bewerten andere Kunden diesen Artikel:
0
(
basato su 0
Recensioni)

Photometrische Daten

Farbtemperatur Bezeichnung:C-WHITE
Farbtemperatur (ºKelvin):6500
Lichtstrom lm oder lm/m:1480
Lichtstrom 2 (Lm):1035
Lichtstrom 3 (Lm):532
CRI:90
Abstrahlwinkel (Grad):120

Elektrische Daten

Betriebsspannung:24V
Leistung (Watt):14
Leistung 2 (Watt):9.6
Leistung 3 (Watt):4.8
Dimmbar:mit separaten Controller

LED Technische Daten

Leistung (Watt/m):14
Leistungsaufnahme (Watt/m):14
Effizienz (Lumen/W):98
LED-Anzahl pro m:140
Teilungsmass (mm):14.28

Technische Daten

Umgebungstemperatur:-10° bis 45°

Prüfzeichen

Energie-Effizienz EEI:B
IP Schutzklasse:IP20

Varianti

Länge in mm:5000
Breite in mm:8
Höhe in mm:1.5
